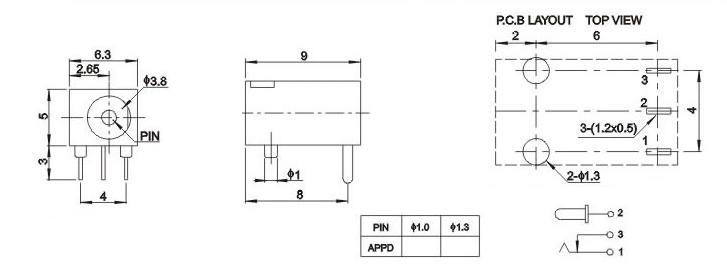

DC-003
Date：2012/10/12 Read：3344
Product introduction：
額定負(fù)荷Rating：DC 50V 0.5A 接觸電阻Contact Resistance:50mΩMax 絕緣阻坑Insulation Resistance：100MΩMin 耐高壓Withstand Voltage：AC 250V 1Min 焊接溫度 Soldering Temper:260±5℃5s 機(jī)械壽命Mechanical：10000次 電氣壽命Electrical Life：5000次 適用溫度 Ambient Temper Used -25℃ to 85℃ 適用濕度Ambient Humidity Used 85%RH 插拔力 Operating Force 3-30N
